Water bath vaporizer
We Support Customized Services
Regardless Of Material And Model Please Tell Me Your Needs
- 产品描述
- 符合标准
-
Introduce
A water bath reheater is a device used for heating and reheating low-temperature gases or liquids. It is usually used after an air heated vaporizer and before a depressurization lever. It can also directly vaporize low-temperature liquids, eliminating the need for an air heated vaporizer. Using electric heaters, steam, or circulating hot water as heat sources, the low-temperature medium inside the compact heat exchange tube exchanges heat with the hot water to raise the temperature of the low-temperature gas or liquid, in order to meet the needs of downstream equipment and users. It has a wide range of applicable media, including liquid oxygen, liquid nitrogen, liquid argon, liquefied natural gas, liquid carbon dioxide, liquefied petroleum gas, hydrogen, ammonia, etc.
Working principle
The water bath reheater uses hot water to exchange heat with low-temperature liquids or gases, thereby vaporizing and heating the low-temperature liquids or gases. When low-temperature gas or liquid passes through the heat exchange tube from the inlet, the water heated by the heat source outside the tube transfers heat to the low-temperature medium inside the tube, causing its temperature to rise and convert into a normal temperature gas state or flow out from the outlet after reaching the required temperature. To ensure precise temperature control, the equipment usually adopts an automatic water temperature control system. Taking the electric heating water bath reheater as an example, the temperature control box is equipped with a constant temperature controller and an over temperature controller. The constant temperature controller controls the water bath temperature at a set value, such as around 60 ℃. When the water bath temperature exceeds a certain value, such as 80 ℃, the over temperature controller will cut off the power supply of the electric heater and alarm.
Design

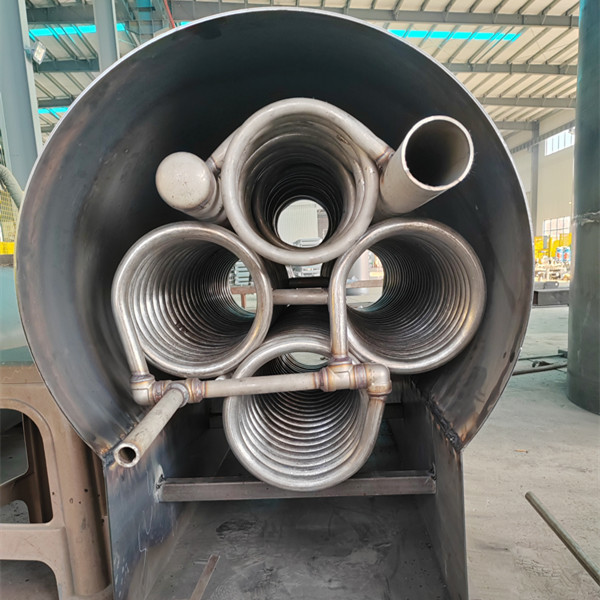

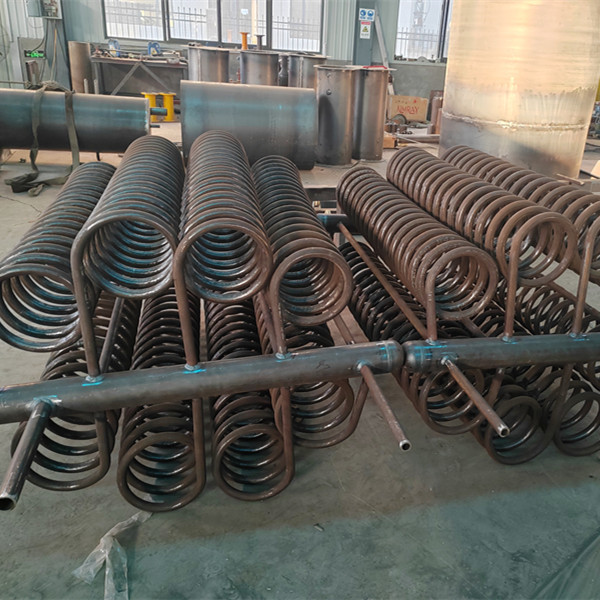

● Structural design: mainly includes large cylinder body, gasification pipeline components, explosion-proof electric heater (electric heating type), and other parts. The top of the large cylinder is equipped with an exhaust valve, water inlet, and liquid level gauge, and the bottom is equipped with a discharge outlet. The gasification pipeline component includes an inlet pipe, an outlet pipe, and several rows of pipes. The two ends of the rows of pipes are respectively connected to the inlet pipe and the outlet pipe. Low temperature gas or liquid enters the rows of pipes through the inlet pipe, exchanges heat with the hot water inside the cylinder, and is discharged from the outlet pipe. To increase the heat exchange area and efficiency, some reheaters are designed with U-shaped heat exchange tubes, inclined tubes, or heat exchange pipelines with torsion spring bending.
● Material selection and design: The large cylinder body is generally made of carbon steel or stainless steel, which has good corrosion resistance and strength. Heat exchange tubes are usually made of high-quality low-temperature seamless stainless steel pipes, such as 304 stainless steel, which can adapt to low-temperature environments and corrosion of different media, and have good heat transfer performance. Explosion proof electric heater (electric heating type) adopts a specially designed high-efficiency explosion-proof type to ensure safe operation in flammable and explosive environments. In addition, some components of the equipment may also be connected by flanges for easy disassembly and maintenance.
● Process design: Based on different application scenarios and media, optimize the flow process of gases or liquids to minimize pressure drop, avoid flow deviation, and ensure that fluid flow rate is controlled within a safe range. At the same time, the heating system and temperature control system should be designed reasonably to meet the user's requirements for the temperature and flow rate of the gas or liquid after reheating. For example, setting the gas pipeline as a staggered and evenly distributed inclined column can keep the outlet temperature constant even when the gas flow rate is high.
Parameter
Name
Water bath vaporizers
Medium
LNG LPG CNG LO₂ LN₂ LAr LCO₂ Etc…..
heating mode
Electricity、 Circulating hot water 、 Steam
Voltage/ Power
220V 380V / 9KW-50KW （resultant）
Inlet pressure
0.2 - 30 (MPa)
Outlet pressure
0.2 – 30 (MPa)
Flow range
50 - 100000m3 /h 、KG
Inlet size (mm)
DN25 – DN400
Outlet size (mm)
DN50 – DN400
Size / Shape
Customization
Major materials
304 / 20# /Q345e
Main equipment
Electronic control、 Heating tube、Temperature sensor、Level gauge
Operating temperature range
-192ºC-65 ºC
Options
EPS XPS
